BITS UND BOLTS · HARDWARE PROTOTYPE · NOT YET IN PRODUCTION

HAWK 370

The slotket that finally does it all.

A Slot 1 to Socket 370 adapter built to run every Socket 370 processor on one board - Mendocino, Coppermine, Tualatin, and VIA C3. Hard gold edge connector. Tested to 155 MHz FSB.

Not just a render - it's already running on camera. Watch the full build & test video → (and see what other retro builders are saying in the comments)

what you'd actually get

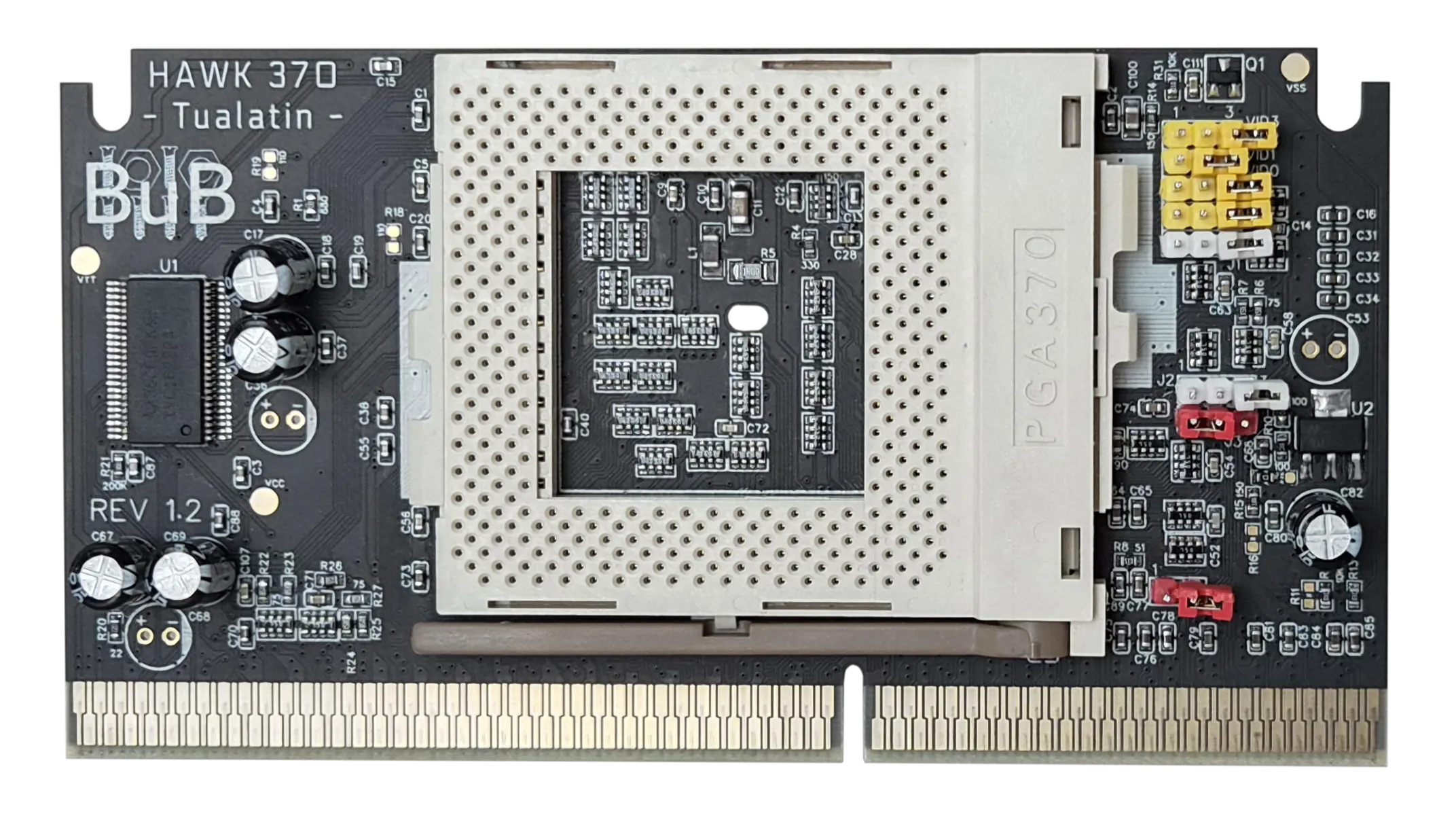

HAWK 370 slotket adapter, final look
Drop hawk370.webp next to this file to show it here.

This (Revision 1.2) is more or less the final look - matte black with white silk screen. Unfortunately, the color isn't customizable. Revision 1.5 offers mounting holes, spot for ESP32-C3 to wirelessly control CPU Throttle (optional), and 2.1V+ voltage unlock (optional).

what it is

CPU SUPPORT - THE WHOLE SOCKET 370 LINEUP, ONE BOARD

Mendocino  ·  Coppermine  ·  Tualatin  ·  VIA C3

SMP (dual-CPU) capable
Mendocino, Coppermine Pentium III, and Tualatin (Pentium III-S) only
- for CPUs that support it.

Premium Gold Connector
Hard gold plated (10 - 15µ)
Tested FSB
155 MHz (MSI BX Master)
Socket
ZIF 370 (new)
Status
Final prototype in verification
Requirements for Tualatin/VIA C3
MB VRM 1.5V and compatible BIOS
WARNING
HAWK 370 does not have a VRM

optional: throttle control & live monitoring

HAWK 370 has reserved footprints for an ESP32-C3, so you can add software CPU throttling and live rail monitoring later.

CPU throttle control
Adjusts effective CPU speed via STPCLK, from software
Live rail monitoring
Real-time VCORE and VTT readouts
Interface
Local web UI over Wi-Fi - no app or account
Firmware
Fully open source
Firmware status
Early - v0.1, under development
ESP32-C3 module
Not included - solder-on footprint only

This is an optional upgrade, not part of the base adapter or the pricing below. The HAWK 370 works as a normal slotket with nothing populated on those pads; the ESP32-C3 itself isn't included.

if this shipped

Here's the plan: fully assembled adapters, sold in bundles or individually, through PCBWay Bazaar.
No kits (sadly) - customs and import rules made that difficult for us. However, we might be able to offer just the PCB.

This is what the pricing would look like.

Not included above: shipping, and any VAT, customs duty, or import tariff your country charges on arrival. Those extra charges are added on top and vary by destination - PCBWay Bazaar calculates and shows them at checkout when applicable, once this is real.

the moment of truth

This part isn't a real order - nothing is charged, nothing is sent. I just want to know how it feels to actually decide, not just say you're "interested."

Bundle 1 × HAWK 370
Price per adapter $135.00
Shipping calculated at checkout
VAT / customs / tariffs not included, may apply
Adapter subtotal $135.00

This page collects your reaction, not your money. When the real batch goes live, it will be a normal listing on PCBWay Bazaar - this button doesn't buy anything.
